| • Computes State of Charge for lead acid battery types [SLA, Gel, Flooded] | ||||||||||||||||||||
| • Test battery condition - quickly and easily identifies weak or failing batteries | ||||||||||||||||||||
| • Patented high accuracy Pulse Load Test - battery safe, non-invasive | ||||||||||||||||||||
| • Test 2-volt, 4-volt, 6-volt, 8-volt, 12-volt | ||||||||||||||||||||
| • Measures battery performance under load, not just voltage or internal resistance | ||||||||||||||||||||
| • Ideal for battery management and cell matching - reduce cost and increase reliability | ||||||||||||||||||||
| • Made in U.S.A. Patents 6,823,274 - D611851 | ||||||||||||||||||||
 |
||||||||||||||||||||

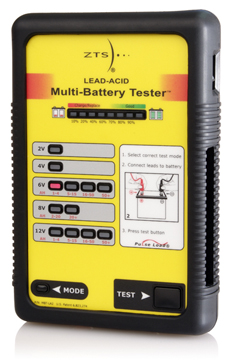

| The ZTS Lead Acid Multi-Battery Tester (MBT-LA2) provides a comprehensive means of testing the state of charge and battery condition for 2-volt, 4-volt, 6-volt, 8-volt, and 12-volt lead acid battery types (SLA, AGM, Gel, Wet). Lightweight, compact design make it an ideal tool for anyone working with lead acid batteries. This microprocessor-controlled instrument tests popular batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Test results are easy to understand. An integrated cooling fan dissipates heat from testing, and the circuit is protected against over-voltage. Rugged NBR rubber sleeve protects against impact. includes 48" removeable test leads with solid copper clamps. The tester is packaged with the accessory kit (K-MBTLA2), which includes a hanging strap and a protective soft case. Requires 4AA batteries (not included). | ||||||||||||||||||||
 |
||||||||||||||||||||
| • Fire/security | • Facility operations | |||||||||||||||||||
| • UPS | • Utilities | |||||||||||||||||||
| • Safety | ||||||||||||||||||||
| • Emergency lighting | ||||||||||||||||||||
| • Inspection | ||||||||||||||||||||
| • Medical | ||||||||||||||||||||
| • Government | ||||||||||||||||||||
| • Industrial | ||||||||||||||||||||
| • Military | ||||||||||||||||||||
| • Access control | ||||||||||||||||||||
| • IT | ||||||||||||||||||||
| • Manufacturing | ||||||||||||||||||||
| • Telecom | ||||||||||||||||||||
| • Battery management | ||||||||||||||||||||
| • Mobility | • Auto/marine/RV | |||||||||||||||||||
 |
||||||||||||||||||||
| P/N: MBT-LA2 | ||||||||||||||||||||
| Testing capability (modes): | ||||||||||||||||||||
| 2-volt [2-25AH] | ||||||||||||||||||||
| 4-volt [2-25AH] | ||||||||||||||||||||
| 6-volt [1-4AH, 5-15AH, 16-50AH, 51-200AH] | ||||||||||||||||||||
| 8-volt [2-20AH, 21-150AH] | ||||||||||||||||||||
| 12-volt [1-4AH, 5-15AH, 16-50AH, 51-200AH] | ||||||||||||||||||||
| Power (internal): 4 x AA batteries | ||||||||||||||||||||
| Display: 8 LEDs - colors green, yellow, red | ||||||||||||||||||||
| Pulse Load: magnitude varies according to battery type | ||||||||||||||||||||
| Auto shut-off: after 20 minutes w/o test activity | ||||||||||||||||||||
| Test duration: approx. 15 seconds | ||||||||||||||||||||
| Test leads: 48" rubber coated high strand count, solid copper clamps, R/A sheathed banana plugs | ||||||||||||||||||||
| Dimensions: 9.25 x 6.25 x 2.00 inches | ||||||||||||||||||||
| Weight: approx. 32 oz. (908g) | ||||||||||||||||||||
| UPC: 856777000206 | ||||||||||||||||||||
| NSN: 6625-01-675-0424 | ||||||||||||||||||||
 |
||||||||||||||||||||
| These flexible 48" lead sets feature high strand count 18AWG rubber coated, kinkless lead wire with R/A sheathed banana plugs. There are two styles of solid copper clamps available. Clip-type is standard on MBT-LA2. Plier-type is ideal for large batteries. | ||||||||||||||||||||
 |
||||||||||||||||||||
 |
||||||||||||||||||||
 |
|||||||||||
|
|
|||||||||||
|
|||||||||||
|
|
|||||||||||
 |
|||||||||||
 |
|||||||||||
 |
|||||||||||
 |
 |
 |
 |
||||||||

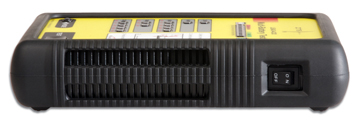

Internal cooling fan
48" interchangeable test leads
Easy to understand
LED display
LED display
12 test modes
Simple operation
Test results in 15 seconds
Test results in 15 seconds
Rugged rubber bumpers
Clip-Type
Plier-type
